AC/DC Switching Power Supply

  • Open Frame, Enclosed, U Bracket and Din Rail Design
  • Universal Input Range
  • High Efficiency up to 93%
  • Wide Output Voltage
  • PFC Function
  • Ultra Compact Dimension & Weight
  • UL Safety Approved


  • AC/DC Switching Power Supply Selection Table:

    Series Power rating Input voltage Output voltage Features Untitled
    ZQF30 30 W 90 - 264 VAC 13.5, 24, 48 High Efficiency Power
    Size:101.6 x 50.8 x 28.5 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    ZQF30-R 30 W 90 - 264 VAC 13.5, 24, 48 High Efficiency Power
    Size:101.6 x 50.8 x 28.5 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    ZQF60 60 W 90 - 264 VAC 13.5, 24, 28, 48, 54 High Efficiency Power
    Size:101.6 x 50.8 x 28.5 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    ZQF60-R 60 W 90 - 264 VAC 13.5, 24, 28, 48, 54 High Efficiency Power
    Size:101.6 x 50.8 x 28.5 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    PLF16 16 W 90 - 264 VAC 15.6, 24, 48 High Efficiency Power
    Size:88.0 x 43.0 x 28.0 mm
    Isolation:4000 VAC
    Data Sheet (pdf)
    PLF25 25 W 90 - 264 VAC 18, 24, 36, 48, 58 High Efficiency Power
    Size:88.0 x 43.0 x 28.0 mm
    Isolation:4000 VAC
    Data Sheet (pdf)
    PLF30 30 W 90 - 264 VAC 13.5, 24, 48 High Efficiency Power
    Size:125.0 x 60.0 x 35.0 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    PLF60 60 W 90 - 264 VAC 13.5, 24, 28, 48, 54 High Efficiency Power
    Size:125.0 x 60.0 x 35.0 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    POL10/16 N/A 3.3V - 3.3 - 3.4 VDC 3.3 DC-DC Brick
    Size: 50.8 x 14.0 x 12.0 mm
    Issolation
    Data Sheet (pdf)
    PSF60 60 W 90 - 295 VAC 24, 36, 54 High Efficiency Power
    Size:144.0 x 70.0 x 37.5 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    PSF100 100 W 90 - 295 VAC 24, 36, 54 High Efficiency Power
    Size:144.0 x 70.0 x 37.5 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    QLF60 60 W 90 - 295 VAC 24, 36, 54 High Efficiency Power
    Size:120.0 x 60.0 x 35.0 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    QLF75 75 W 90 - 295 VAC 24, 36, 54 High Efficiency Power
    Size: 120.0 x 60.0 x 30.0 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    QLF100 100 W 90 - 295 VAC 24, 36, 54 High Efficiency Power
    Size:120.0 x 60.0 x 35.0 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    SZA60O 60 W 90 - 264 VAC
    120 - 370 VDC
    5, 12, 15, 24, 48 Economic Power
    Size:76.3 x 50.6 x 31.5 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)
    SZA60U 60 W 90 - 264 VAC
    120 - 370 VDC
    5, 12, 15, 24, 48 Economic Power
    Size:80.0 x 59.7 x 38.0 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)
    SZA100 100 W 85 - 265 VAC
    120 - 370 VDC
    5, 12, 15, 24, 48 Economic Power
    Size:102.75 x 51.7 x 34.5 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)
    ADF120 120 W 90 - 264 VAC
    120 - 370 VDC
    12, 24, 48 High Efficiency Power
    Size:42.4 x 131.1 x 100.0 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)
    AES60O 60 W 90 - 264 VAC
    120 - 370 VDC
    5, 9, 12, 15, 24, 48 Economic Power
    Size:103.9 x 52.1 x 25.4 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)
    AES60E 60 W 90 - 264 VAC
    120 - 370 VDC
    5, 9, 12, 15, 24, 48 Economic Power
    Size:105.0 x 58.0 x 38.1 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)
    ZLF60 60 W 90 - 295 VAC 24, 36, 54 High Efficiency Power
    Size:104.6 x 52.1 x 27.0 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    ZLF75 75 W 90 - 295 VAC 24, 36, 54 High Efficiency Power
    Size:104.6 x 52.1 x 27.0 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    ZLF100 100 W 90 - 295 VAC 24, 36, 54 High Efficiency Power
    Size:104.6 x 52.1 x 27.0 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    APF100 100 W 90 - 295 VAC 24, 36, 54 High Efficiency Power
    Size:144.0 x 70.0 x 37.5 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    APF150 150 W 90 - 305 VAC 12, 24, 36, 48, 54 High Efficiency Power
    Size:144.0 x 70.0 x 37.5 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    AQF60C 60 W 90 - 305 VAC
    127 - 430 VDC
    24, 36, 48, 54 High Efficiency Power
    Size:106.0 x 52.0 x 27.0 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    AQF80C 80 W 90 - 305 VAC
    127 - 430 VDC
    24, 36, 48, 54 High Efficiency Power
    Size:106.0 x 52.0 x 27.0 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    AQF100C 100 W 90 - 264 VAC
    120 - 370 VDC
    12, 15, 24, 48 High Efficiency Power
    Size:103.9 x 52.1 x 25.0 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)
    AQF100O 100 W - 120 W 90 - 264 VAC
    120 - 370 VDC
    12, 15, 24, 48 High Efficiency Power
    Size:103.9 x 54.1 x 25.0 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)
    AQF120E 120 W - 180 W 90 - 264 VAC
    120 - 370 VDC
    5, 12, 15, 24, 48 High Efficiency Power
    Size:127.0 x 82.2 x 38.1 mm
    Isolation:4000 VAC or 5656 VDC
    Data Sheet (pdf)
    AQF120O 120 W - 180 W 90 - 264 VAC
    120 - 370 VDC
    5, 12, 15, 24, 48 High Efficiency Power
    Size:5S:127.0 x 76.2 x 31.5;Others:127.0 x 76.2 x 29.5 mm
    Isolation:4000 VAC or 5656 VD
    Data Sheet (pdf)
    AQF120U 120 W - 180 W 90 - 264 VAC
    120 - 370 VDC
    5, 12, 15, 24, 48 High Efficiency Power
    Size:127.0 x 82.2 x 38.1 mm
    Isolation:4000 VAC or 5656 VDC
    Data Sheet (pdf)
    AQF160 100 W - 160 W 90 - 264 VAC
    120 - 370 VDC
    12, 15, 24, 48 High Efficiency Power
    Size:103.9 x 52.1 x 29.0 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)
    AQF240E 240 W 90 - 264 VAC
    120 - 370 VDC
    12, 15, 24, 28, 32, 48 High Efficiency Power
    Size:150.0 x 106.0 x 35.0 mm
    Isolation:4000 VAC or 5656 VDC
    Data Sheet (pdf)
    AQF240U 240 W 90 - 264 VAC
    120 - 370 VDC
    5, 12, 15, 24, 28, 32, 48 High Efficiency Power
    Size:150.0 x 106.0 x 35.0 mm
    Isolation:4000 VAC or 5656 VDC
    Data Sheet (pdf)
    AQF360E 360 W 90 - 264 VAC
    100 - 370 VDC
    12, 24, 36, 48 High Efficiency Power
    Size:172.7 x 81.3 x 53.3 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)
    AQF360F 360 W 90 - 264 VAC
    120 - 370 VDC
    12, 24, 36, 48 High Efficiency Power
    Size:172.7 x 81.3 x 42.0 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)
    AQF360U 240 W - 360 W 90 - 264 VAC
    120 - 370 VDC
    12, 24, 36, 48 High Efficiency Power
    Size:172.7 x 81.3 x 38.0 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)
    AQF500 500 W 90 - 264 VAC
    127 - 370 VDC
    12, 24, 48 High Efficiency Power
    Size:127.0 x 76.2 x 35.5 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)
    AQF600 600 W 90 - 264 VAC
    120 - 370 VDC
    12, 24, 48, 54 High Efficiency Power
    Size:228.5 x 105.0 x 44.0 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)
    AQFC480F 480 W 90 - 264 VAC
    120 - 370 VDC
    12, 24, 36, 48 High Efficiency Power
    Size:202.8 x 106.5 x 45.0 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)
    AQFC480U 480 W 90 - 264 VAC
    120 - 370 VDC
    12, 24, 36, 48 High Efficiency Power
    Size:177.8 x 106.5 x 45.0 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)
    AQFV480E 480 W 90 - 264 VAC
    120 - 370 VDC
    12, 24, 36, 48 High Efficiency Power
    Size:177.8 x 106.5 x 60.3 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)
    AQFV480F 480 W 90 - 264 VAC
    120 - 370 VDC
    12, 24, 36, 48 High Efficiency Power
    Size:202.8 x 106.5 x 45.0 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)
    ADF240C 240 W 90 - 264 VAC
    120 - 370 VDC
    24, 48 High Efficiency Power
    Size:65.0 x 126.0 x 108.0 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)
    ADF240 240 W 90 - 264 VAC
    120 - 370 VDC
    24, 48 High Efficiency Power
    Size:65.0 x 126.0 x 108.0 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)
    ALF150 150 W 90 - 305 VAC
    120 - 430 VDC
    12, 24, 36, 48, 54, 215 High Efficiency Power
    Size:163.7 x 71.0 x 38.0 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    ALF100 100 W 90 - 305 VAC
    120 - 430 VDC
    12, 24, 36, 48, 54, 140, 280 High Efficiency Power
    Size:163.7 x 71.0 x 38.0 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    ALF80 80 W 90 - 305 VAC
    127 - 430 VDC
    24, 36, 48, 54 High Efficiency Power
    Size:120.0 x 60.0 x 35.0 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    ALF60 60 W 90 - 305 VAC
    127 - 430 VDC
    24, 36, 48, 54 High Efficiency Power
    Size:120.0 x 60.0 x 35.0 mm
    Isolation:3750 VAC
    Data Sheet (pdf)
    ALF240 240 W 90 - 264 VAC
    120 - 430 VDC
    12, 24, 36, 48, 54 High Efficiency Power
    Size:212.2 x 70.0 x 38.0 mm
    Isolation:3000 VAC
    Data Sheet (pdf)
    AES60U 60 W 90 - 264 VAC
    120 - 370 VDC
    5, 9, 12, 15, 24, 48 Economic Power
    Size:105.0 x 58.0 x 38.1 mm
    Isolation:3000 VAC or 4242 VDC
    Data Sheet (pdf)

    ZQF30

  • Open Frame LED Power Supply
  • With Constant Current & Constant Voltage (C.C+C.V mode)
  • Dimming fuction:0~10VDC & PWM Duty Controlled
  • Universal Input: 100-240 VAC
  • With P.F.C. Function, PF>0.9
  • Free Air Convection
  • Protections: Over Load / Over Voltage / Short Circuit
  • High Reliability & Double Layered PCB
  • Ultra Compact Size: 4.0 x 2.0 x 1.12 Inches
  • ZQF30-R

  • Open Frame LED Power Supply
  • With Constant Current & Constant Voltage (C.C+C.V mode)
  • Universal Input: 100-240 VAC
  • With P.F.C. Function, PF>0.9
  • Free Air Convection
  • Protections: Over Load / Over Voltage / Short Circuit
  • High Reliability & Double Layered PCB
  • Ultra Compact Size: 4.0 x 2.0 x 1.12 Inches
  • ZQF60

  • Open Frame LED Power Supply
  • With Constant Current & Constant Voltage (C.C+C.V mode)
  • Dimming fuction:0~10VDC & PWM Duty Controlled
  • Universal Input: 100-240 VAC
  • With P.F.C. Function, PF>0.9
  • Free Air Convection
  • Protections: Over Load / Over Voltage / Short Circuit
  • High Reliability & Double Layered PCB
  • Ultra Compact Size: 4.0 x 2.0 x 1.12 Inches
  • ZQF60-R

  • Open Frame LED Power Supply
  • With Constant Current & Constant Voltage (C.C+C.V mode)
  • Universal Input: 100-240 VAC
  • With P.F.C. Function, PF>0.9
  • Free Air Convection
  • Protections: Over Load / Over Voltage / Short Circuit
  • High Reliability & Double Layered PCB
  • Ultra Compact Size: 4.0 x 2.0 x 1.12 Inches
  • PLF16

  • Fully Isolated Plastic Case with IP65 Level
  • Constant Current
  • Universal Input: 90-264 VAC
  • With P.F.C. Function, PF>0.93
  • High Efficiency up to 86%
  • Turn-on Delay < 250ms
  • Protections: Over Load / Over Voltage / Short Circuit .Over Temperature(optional)
  • High Reliability & Double Layered PCB
  • PLF25

  • Fully Isolated Plastic Case with IP65 Level
  • Constant Current
  • Universal Input: 90-264 VAC
  • With P.F.C. Function, PF>0.93
  • High Efficiency up to 86%
  • Turn-on Delay < 250ms
  • Protections: Over Load / Over Voltage / Short Circuit .Over Temperature(optional)
  • High Reliability & Double Layered PCB
  • Ultra Compact Size: 3.47 x 1.69 x 1.1 Inches
  • PLF30

  • Fully Isolated Plastic Case with IP67 Level
  • Constant Current
  • With Constant Current & Constant Voltage (C.C+C.V mode)
  • Universal Input: 100-240 VAC
  • With P.F.C. Function, PF>0.9
  • Free Air Convection
  • Protections: Over Load / Over Voltage / Short Circuit
  • High Reliability & Double Layered PCB
  • Ultra Compact Size: 4.92 x 2.36 x 1.38 Inches
  • PLF60

  • Fully Isolated Plastic Case with IP67 Level
  • Constant Current
  • With Constant Current & Constant Voltage (C.C+C.V mode)
  • Universal Input: 100-240 VAC
  • With P.F.C. Function, PF>0.9
  • Free Air Convection
  • Protections: Over Load / Over Voltage / Short Circuit
  • High Reliability & Double Layered PCB
  • Ultra Compact Size: 4.92 x 2.36 x 1.38 Inches

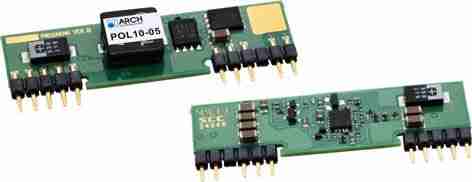

  • POL10/16

  • Input under Voltage Protection
  • Over Current Protection (Hiccup Mode)
  • Short Circuit Protection (Hiccup Mode)
  • Over Voltage Protection (Self-recovery)
  • Over Temperature Protection (Self-recovery)
  • Remote ON/OFF Control
  • Remote Sense
  • Output Voltage Trim
  • Monotonic Start-Up Into Pre-Biased Outputs
  • Meet UL94V-0 flammability requirements
  • Size: 2.0 x 0.5 x 0.33 Inches (POL16-05)
  • 2.0 x 0.55 x 0.47 Inches (others Model)
  • PSF60

  • Fully Isolated Plastic Case with IP67 Level
  • With Constant Current & Constant Voltage (C.C+C.V mode)
  • With P.F.C. Function, PF>0.9
  • High Efficiency up to 89%
  • Free Air Convection
  • Protections: Over Load / Over Voltage / Short Circuit
  • High Reliability & Double Layered PCB
  • Suitable for LED lighting and moving sign applications
  • Isolation Class II
  • PSF100

  • Fully Isolated Plastic Case with IP67 Level
  • With Constant Current & Constant Voltage (C.C+C.V mode)
  • With P.F.C. Function, PF>0.9
  • High Efficiency up to 90%
  • Free Air Convection
  • Protections: Over Load / Over Voltage / Short Circuit
  • High Reliability & Double Layered PCB
  • Suitable for LED lighting and moving sign applications
  • Isolation Class II
  • QLF60

  • IP66/67 Design for Indoor or LED Outdoor Installations
  • With Constant Current & Constant Voltage (C.C+C.V mode)
  • With P.F.C. Function, PF>0.9
  • High Efficiency up to 90%
  • Free Air Convection
  • Protections: Over Load / Over Voltage / Short Circuit
  • High Reliability & Double Layered PCB
  • Suitable for LED lighting and moving sign applications
  • Ultra Compact Size: 4.72 x 2.36 x 1.38 Inches
  • QLF75

  • IP66/67 Design for Indoor or LED Outdoor Installations
  • With Constant Current & Constant Voltage (C.C+C.V mode)
  • With P.F.C. Function, PF>0.9
  • High Efficiency up to 90%
  • Free Air Convection
  • Protections: Over Load / Over Voltage / Short Circuit
  • High Reliability & Double Layered PCB
  • Suitable for LED lighting and moving sign applications
  • Ultra Compact Size: 4.72 x 2.36 x 1.38 Inches
  • QLF100

  • IP66/67 Design for Indoor or LED Outdoor Installations
  • With Constant Current & Constant Voltage (C.C+C.V mode)
  • With P.F.C. Function, PF>0.9
  • High Efficiency up to 90%
  • Free Air Convection
  • Protections: Over Load / Over Voltage / Short Circuit
  • High Reliability & Double Layered PCB
  • Suitable for LED lighting and moving sign applications
  • Ultra Compact Size: 4.72 x 2.36 x 1.38 Inches
  • SZA60O

  • Open Frame Switching Power Supply
  • Universal Input: 90-264 VAC
  • Single Output
  • <0.3W No Load Input Power
  • 5 VDC to 48 VDC Output
  • 3Ultra Compact Size: 3.0 x 2.0 x 1.24 Inches
  • SZA60U

  • U Bracket Switching Power Supply
  • Universal Input: 90-264 VAC
  • Single Output
  • <0.3W No Load Input Power
  • 5 VDC to 48 VDC Output
  • Ultra Compact Size: 3.15 x 2.35 x 1.5 Inches
  • SZA100

  • Open Frame Switching Power Supply
  • Universal Input: 85-265 VAC
  • Single Output
  • <0.3W No Load Input Power (48Vout <0.5W)
  • 5 VDC to 48 VDC Output
  • Ultra Compact Size: 4.05 x 2.04 x 1.36 Inches
  • ADF120

  • Din Rail Switching Power Supply
  • Universal Input: 90-264 VAC
  • With P.F.C. Function
  • Free Air Convection
  • Ultra Compact Size: 1.66 x 5.16 x 3.94 Inches
  • AES60O

  • Open Frame Switching Power Supply
  • Universal Input: 90-264 VAC
  • Single Output
  • 5 VDC to 48 VDC Output
  • AES60E

  • Enclosed Switching Power Supply
  • Universal Input: 90-264 VAC
  • Single Output
  • 5 VDC to 48 VDC Output
  • Din Rail Kit For Optional
  • ZLF60

  • Open Frame LED Power Supply
  • With Constant Current & Constant Voltage (C.C+C.V mode)
  • With P.F.C. Function, PF>0.9
  • High Efficiency up to 89%
  • Free Air Convection
  • Protections: Over Load / Over Voltage / Short Circuit
  • High Reliability & Double Layered PCB
  • Ultra Compact Size: 4.12 x 2.07 x 1.06 Inches
  • ZLF75

  • Open Frame LED Power Supply
  • With Constant Current & Constant Voltage (C.C+C.V mode)
  • With P.F.C. Function, PF>0.9
  • High Efficiency up to 90%
  • Free Air Convection
  • Protections: Over Load / Over Voltage / Short Circuit
  • High Reliability & Double Layered PCB
  • Ultra Compact Size: 4.12 x 2.07 x 1.06 Inches
  • ZLF100

  • Open Frame LED Power Supply
  • With Constant Current & Constant Voltage (C.C+C.V mode)
  • With P.F.C. Function, PF>0.9
  • High Efficiency up to 90%
  • Free Air Convection
  • Protections: Over Load / Over Voltage / Short Circuit
  • High Reliability & Double Layered PCB
  • Ultra Compact Size: 4.12 x 2.07 x 1.06 Inches
  • APF100

  • Fully Isolated Plastic Case with IP67 Level
  • Universal Input: 90-305 VAC or 120-430 VDC
  • Bulit-in Active PFC Function
  • Free Air Convection
  • High Reliability
  • Isolation Class II
  • LED Power Application
  • APF150

  • Fully Isolated Plastic Case with IP67 Level
  • Universal Input: 90-305 VAC or 120-430 VDC
  • Bulit-in Active PFC Function
  • Free Air Convection
  • High Reliability
  • Isolation Class II
  • LED Power Application
  • AQF60C

  • Open Frame LED Power Supply
  • Universal Input: 90-305 VAC
  • <0.5W No Load Input Power
  • Bulit-in Active PFC Function
  • Free Air Convection
  • High Reliability
  • With Constant Current & Constant Voltage
  • LED Power Application
  • AQF80C

  • Open Frame LED Power Supply
  • Universal Input: 90-305 VAC
  • <0.5W No Load Input Power
  • Bulit-in Active PFC Function
  • Free Air Convection
  • High Reliability
  • With Constant Current & Constant Voltage
  • LED Power Application
  • AQF100C

  • Open Frame 100W Power Supply in 4.0 x 2.0 Size
  • High Efficiency up to 93% Typical
  • Active PFC Function, >0.95 (230Vac), >0.99 (115Vac)
  • Universal Input: 90-264 VAC
  • Continuous Short Circuit Protection with Hiccup Mode and Auto Recover
  • Low Leakage Current, <250uA
  • EN55022 Class B Meets (pending)
  • AQF100O

  • Open Frame 100W Power Supply in 4.0 x 2.0 Size
  • High Efficiency up to 93% Typical
  • Active PFC Function, >0.95 (230Vac), >0.99 (115Vac)
  • Universal Input: 90-264 VAC
  • 120W with FAN (20CFM / 300LFM)
  • Low Leakage Current, <250uA
  • EN55022 Class B Meets
  • Continuous Short Circuit Protection with Hiccup Mode and Auto Recover
  • AQF120E

  • Din Rail Switching Power Supply
  • 180 Watt with 18CFM FAN for 12V to 48V Output Voltage
  • 150 Watt with 30CFM FAN for 5V Output Voltage
  • High Efficiency up to 93%
  • Universal Input: 90-264 VAC
  • Low Ripple and Noise
  • With P.F.C. Function >0.95
  • 120 Watt with Free Air Convection
  • Ultra Compact Size: 5.0 x 3.24 x 1.5 Inches
  • AQF120O

  • Open Frame Switching Power Supply
  • 180 Watt with 18CFM FAN for 12V to 48V Output Voltage
  • 150 Watt with 30CFM FAN for 5V Output Voltage
  • High Efficiency up to 93%
  • Universal Input: 90-264 VAC
  • Low Ripple and Noise
  • With P.F.C. Function >0.95
  • 120 Watt with Free Air Convection
  • Ultra Compact Size: 5.0 x 3.0 x 1.16 Inches
  • AQF120U

  • U Bracket Switching Power Supply
  • 180 Watt with 18CFM FAN for 12V to 48V Output Voltage
  • 150 Watt with 30CFM FAN for 5V Output Voltage
  • High Efficiency up to 93%
  • Universal Input: 90-264 VAC
  • Low Ripple and Noise
  • With P.F.C. Function >0.95
  • 120 Watt with Free Air Convection
  • Ultra Compact Size: 5.0 x 3.24 x 1.5 Inches
  • AQF160

  • Open Frame 100W Power Supply in 4.0 x 2.0 Size
  • Active PFC Function, >0.95 (230Vac), >0.98 (115Vac)
  • Universal Input: 90-264 VAC
  • 100W Full Load at 40C Under Free Air Convection
  • 160W with 25CFM FAN
  • <0.5W No Load Input Power (except AQF160-48S)
  • 12V (Aux) / 0.3A
  • EN55022 Class B Meets
  • Isolation Class I
  • Continuous Short Circuit Protection with Hiccup Mode and Auto Recover
  • AQF240E

  • Enclosed Switching Power Supply
  • Universal Input: 90-264 VAC
  • With P.F.C. Function, PF>0.95
  • Free Air Convection
  • High Efficiency up to 93%
  • RoHS Compliant Design
  • Ultra Compact Size: 6.0 x 4.18 x 1.38 Inches
  • AQF240U

  • U Bracket Switching Power Supply
  • Universal Input: 90-264 VAC
  • With P.F.C. Function, PF>0.95
  • Free Air Convection
  • High Efficiency up to 93%
  • RoHS Compliant Design
  • Ultra Compact Size: 6.0 x 4.18 x 1.38 Inches
  • AQF360E

  • Enclosed Switching Power Supply
  • Universal Input: 90-264 VAC
  • With P.F.C. Function, PF>0.95
  • Cooling by Built-in 12 VDC FAN
  • 240W Convection without FAN
  • Protections: Over Load / Over Voltage / Over Temperature / Short/Circuit.All by Auto-recovery
  • Leakage Current <300uA
  • High Power Density
  • High Efficiency up to 93%
  • RoHS Compliant Design
  • Ultra Compact Size: 6.8 x 3.2 x 2.1 Inches
  • AQF360F

  • Enclosed Switching Power Supply
  • Universal Input: 90-264 VAC
  • With P.F.C. Function, PF>0.95
  • Cooling by Built-in 12 VDC FAN
  • 240W Convection without FAN
  • Protections: Over Load / Over Voltage / Over Temperature/ Short Circuit, All by Auto-recovery
  • Leakage Current <300uA
  • High Power Density
  • High Efficiency up to 93%
  • RoHS Compliant Design
  • Ultra Compact Size: 7.8 x 3.2 x 1.6 Inches
  • AQF360U

  • U Bracket Switching Power Supply
  • Universal Input: 90-264 VAC
  • With P.F.C. Function, PF>0.95
  • Cooling by Built-in 12 VDC FAN
  • 240W Convection without FAN
  • Protections: Over Load / Over Voltage / OverTemperature / Short Circuit, All by Auto-recovery
  • Leakage Current <300uA
  • High Power Density
  • High Efficiency up to 93%
  • RoHS Compliant Design
  • Ultra Compact Size: 6.8 x 3.2 x 1.5 Inches
  • AQF500

  • Open Frame Switching Power Supply
  • Remote ON/OFF Function
  • 240 Watt with Free Air Convection
  • 500 Watt with 30CFM FAN
  • Built-in 12V/0.3A Auxiliary Output
  • Standby 5V@1A with Fan, @0.4A without Fan
  • High Efficiency up to 92%
  • With P.F.C. Function >0.95
  • Ultra Compact Size: 5.0 x 3.0 x 1.4 Inches
  • AQF600

  • Universal Input: 90-264 VAC
  • With P.F.C. Function, PF>0.95
  • Remote ON/OFF Function
  • Current Share Function
  • Power Good Function
  • High Efficiency up to 90~93%
  • Protections: Over Load / Over Voltage / Over Temperature / Short Circuit
  • High Power Density
  • RoHS Compliant Design
  • AQFC480F

  • Enclosed Switching Power Supply
  • Universal Input: 90-264 VAC
  • Active P.F.C. Function, PF>0.95
  • Cooling by Built-in DC FAN
  • Protections: Over Load / Over Voltage / Over Temperature / Short Circuit.All by Auto-recovery
  • Built-in Remote ON/OFF Control
  • Stand by 5V @ 0.6A
  • High Efficiency up to 92%
  • Ultra Compact Size: 7.98 x 4.2 x 1.78 Inches
  • AQFC480U

  • U Bracket Switching Power Supply
  • Universal Input: 90-264 VAC
  • Active P.F.C. Function, PF>0.95
  • 300W Convection without FAN
  • 480W Convection with 18CFM FAN
  • Protections: Over Load / Over Voltage/ Over Temperature / Short Circuit All by Auto-recovery
  • Built-in Remote ON/OFF Control
  • Stand by 5V @ 0.3A
  • Stand by 5V @ 0.6A with 18CFM FAN
  • High Efficiency up to 92%
  • Ultra Compact Size: 7.0 x 4.2 x 1.78 Inches
  • AQFV480E

  • Enclosed Switching Power Supply
  • Universal Input: 90-264 VAC
  • Active P.F.C. Function, PF>0.95
  • Cooling by Built-in DC FAN
  • Protections: Over Load / Over Voltage / Over Temperature / Short, Circuit All by Auto-recovery
  • Built-in Remote ON/OFF Control
  • Built-in Remote Sense Function
  • Built-in DC OK Signal
  • Stand by 5V @ 0.6A
  • High Efficiency up to 92%
  • Ultra Compact Size: 7.0 x 4.2 x 2.37 Inches
  • AQFV480F

  • Enclosed Switching Power Supply
  • Universal Input: 90-264 VAC
  • Active P.F.C. Function, PF>0.95
  • Cooling by Built-in DC FAN
  • Protections: Over Load/Over Voltage/Over Temperature / Short Circuit, All by Auto-recovery
  • Built-in Remote ON/OFF Control
  • Built-in Remote Sense Function
  • Built-in DC OK Signal
  • Stand by 5V @ 0.6A
  • High Efficiency up to 92%
  • Ultra Compact Size: 7.98 x 4.2 x 1.78 Inches
  • ADF240C

  • Protections: Short Circuit / Overload / Over Voltage / Over Temperature
  • With P.F.C. Function, PF>0.95
  • Free Air Convection
  • High Efficiency up to 91%
  • Can be Connected in Parallel to Offer the Current Share Function
  • Built-in DC OK Relay Contact
  • ADF240

  • Protections: Short Circuit / Overload / Over Voltage / Over Temperature
  • With P.F.C. Function, PF>0.95
  • Free Air Convection
  • High Efficiency up to 93%
  • Built-in DC OK Relay Contact
  • ALF150

  • IP65/67 Design for Indoor or LED Outdoor Installations
  • Universal Input: 90-305 VAC or 120-430 VDC
  • Bulit-in Active PFC Function
  • Free Air Convection
  • High Reliability
  • With Constant Current & Constant Voltage
  • Output Voltage and Constant Current Level can Be Adjusted Through Internal Potentiometer
  • LED Power Application
  • ALF100

  • IP65/67 Design for Indoor or LED Outdoor Installations
  • Universal Input: 90-305 VAC or 120-430 VDC
  • Bulit-in Active PFC Function
  • Free Air Convection
  • High Reliability
  • With Constant Current & Constant Voltage Output Voltage and Constant Current Level can Be Adjusted Through Internal Potentiometer
  • LED Power Application
  • ALF80

  • IP66/67 Design for Indoor or LED Outdoor Installations
  • Universal Input: 90-305 VAC
  • Three In One Dimming Function (Just For IP67 Design)
  • (1~10VDC & PWM Signal or resistance)
  • <0.5W No Load Input Power
  • Bulit-in Active PFC Function
  • Free Air Convection
  • High Reliability
  • Output Voltage and Constant Current Level can Be Adjusted Through Internal Potentiometer
  • LED Power Application
  • ALF60

  • IP66/67 Design for Indoor or LED Outdoor Installations
  • Universal Input: 90-305 VAC
  • Three In One Dimming Function (Just For IP67 Design)
  • (1~10VDC & PWM Signal or resistance)
  • <0.5W No Load Input Power
  • Bulit-in Active PFC Function
  • Free Air Convection
  • High Reliability
  • Output Voltage and Constant Current Level can Be Adjusted Through Internal Potentiometer
  • LED Power Application
  • ALF240

  • IP65/67 Design for Indoor or Outdoor LED Installations
  • Three In One Dimming Function (Just For IP67 Design)
  • (2~10VDC & PWM Signal or resistance)
  • Bulit-in Active PFC Function, PF>0.95
  • Free Air Convection
  • High Reliability
  • With Constant Current & Constant Voltage
  • Output Voltage and Constant Current Level can Be Adjusted Through Internal Potentiometer
  • LED PowerApplication
  • AES60U

  • U Bracket Switching Power Supply
  • Universal Input: 90-264 VAC
  • Single Output
  • 5 VDC to 48 VDC Output
