Battery Chargers 12V 24V 36V 48V 72V 110V

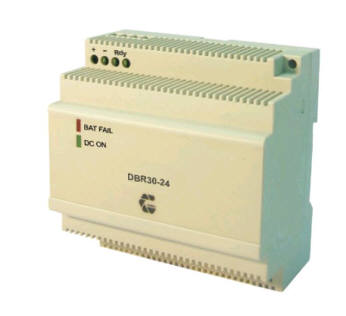

Din Rail Mount Battery Chargers

Range of industrial din rail mount battery chargers

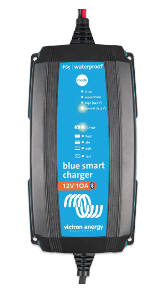

Blue Power Multistep Chargers - IP65

12V Outputs: 5A , 7A , 10A , 15A

24V Outputs: 5A , 8A

Water, dust and chemical resistant

Seven step smart charge algorithm

Recovery of fully discharged batteries Automatic power supply function

Severe cold performance: down to -30°C

Several other battery life enhancing features

Low power mode to charge smaller batteries

Li-ion battery mode

Blue Power Multistep Chargers - IP65 With Bluetooth Connectivity

12V Outputs: 4A , 5A , 7A , 10A , 15A

24V Outputs: 8A

Water, dust and chemical resistant

Seven step smart charge algorithm

Recovery of fully discharged batteries Automatic power supply function

Severe cold performance: down to -30°C

Several other battery life enhancing features

Low power mode to charge smaller batteries

Li-ion battery mode

Built In Bluetooth to monitor charger

Blue Power Multistep Chargers - IP67

12V Outputs: 7A , 13A , 17A , 25A

24V Outputs: 5A , 8A , 12A

Completely encapsulated: waterproof, shockproof and ignition protected

Hi Efficiency 92% or better

Adaptive 4-stage charge algorithm: bulk/absorption/float/storage

Protected against overheating

Can Be used as a power supply

LEDs for status indication

Phoenix Series Multistep Battery Chargers

Output Voltages: 12V 30A , 12V 50A , 24V 16A , 24V 25A

Adaptive 4-stage charge characteristic: bulk - absorption - float - storage.

Two full rated outputs and one 4 Amp output.

Universal input 90-265V, 50/60Hz.

Microprocessor controlled adaptive battery management system

Adaptive feature will automatically optimise the charge process relative to the way the battery is being used.

Variable absorption time to insure the right amount of charge depending on battery condition

Battery safe mode to prevent damage due to excessive gassing.

Storage mode to keep battery stored for long time periods.

Three outputs to charge 3 battery banks two at full current rating and 1 at 4A

Temperature compensation to increase battery life.

Battery voltage sense to compensate for any voltage losses.

CENTAUR Automatic Chargers

Available in models 12V 20A,30A,40A,50A,60A,80A,100A , 200A and 24V 16A, 30A , 40A , 60A , 80A , 100A

Highest quality components , with aluminum epoxy casing.

Universal 90 to 265 Volt input voltage range

Three isolated outputs that each can supply the full output current

Three stage charging, with temperature compensation

Skylla-I Battery Charger

Output Voltages: 24V 80A , 24V 100A

Single and Tripple Output Models

The right amount of charge for a lead-acid battery: variable absorption time

BatterySafe mode: preventing damage due to excessive gassing

Storage mode: less maintenance and aging when the battery is not in use

Smaller and lighter compared to similar models

NMEA2000 Canbus connection

PowerControl: set a maximum shore power

Remote Control

Li-ion (LiFePo4) read

Skylla Battery Charger

Available in 24V 30A, 50A , 80A , 100A and 48V 25A , 50A

Precise Voltage Adjustment to suit exact battery specifications.

3 Steps Microprocessor charging.

Can be used as a power supply.

Two outputs to charge 2 battery banks.

Battery Temperature Compensation.

Battery voltage sense.

SRB Series Industrial Battery Chargers

Fully automatic battery chargers

With temperature compensation and boost features

Compact, lightweight and highly efficient

Switchmode technology

Non-destructive "ERBP" reverse polarity protection (no fuses employed or required)

Current limit factory preset to match battery capacity (default: 100%)

Indefinite short circuit protection

Robust performance in all charging conditions

LED indicators: Charger ON, Boost, Float

100w, 250w, 500W and 750W standard models

13.8V, 27.6V, 41.4V, 55.2V standard models

Phoenix Smart IP43 Charger

Adaptive 5-step charger can provide either 30A or 50A of charge to each of three battery banks. Or the Phoenix 1+1 model provides 3A to the starter-battery, the rest to the house bank. 24V models are available with 16A/25A charge. Bluetooth enabled, you can monitor the charger and set alarms straight from your phone. Adaptive, intelligent, dynamic charge features.

Skylla-IP65

A powerful, waterproof and intelligent battery charger with a 7 -stage adaptive charge algorithm, suitable for a wide range of battery types and chemistries featuring a dedicated Lithium-ion charge algorithm.
The wide range universal input voltage adds flexibility to the installation, the charger will maintain its full output power no matter where it is located in the world.
The IP65 rating makes this charger especially suitable for marine, mobile, and industrial applications and it can withstand the rigors of an adverse environment: heat, humidity and salt air.
Both models are available in two versions: Version 1: 3 full rated outputs , Version2 : 1 full rated output together with an isolated 3A trickle charge output for a starter battery
Models: 12V/70A & 24V/35A

Phoenix Charger

Adaptive 4-stage charge characteristic: bulk - absorption - float - storage. Two full rated outputs and one 4 Amp output. Universal input 90-265V, 50/60Hz.
The Phoenix charger features a microprocessor controlled adaptive battery management system that can be pre-set to suit different types of batteries.
The adaptive feature will automatically optimise the charge process relative to the way the battery is being used.
Models: 12 / 24 Volts

Skylla-i

A modern and powerful battery charger.

The right amount of charge for a lead-acid battery: variable absorption time

BatterySafe mode: preventing damage due to excessive gassing

Storage mode: less maintenance and aging when the battery is not in use

Smaller and lighter compared to similar models

NMEA 2000 Canbus connection

PowerControl: set a maximum shore power

Remote Control

Li-ion (LiFePo4) ready

Models: 24 Volt

Skylla-TG Charger

One full rated output and one 4 Amp output. Charge voltage can be precisely adjusted to suit any battery system. The input for the charger is 230V at 50/60HZ. Charge voltage can be measured directly on the battery terminals in order to compensate for voltage loss due to cable resistance. An external sensor allows measuring battery temperature and compensating charge voltage accordingly.
Models: 24 / 48 Volt

Skylla-TG GMDSS

The Victron Skylla-TG 24/30 and 24/50 GMDSS Chargers have been designed to provide all required monitoring and alarm data. Both the battery and the GMDSS system are connected directly to the charger. Data and alarms are displayed on a digital panel (VE.Net GMDSS panel, to be ordered separately). A standard eight wire UTP cable connects the charger to the panel.

Models: 24 Volt

Centaur Charger

The Centaur range of battery chargers features auto-ranging input covering 90-265VAC 50/60Hz input meaning they can be used anywhere in the world.
Crucially, and unlike many other products that state universal input, the Centaur range will maintain full output power within the entire specified range. Other features include fully automatic three stage charge characteristic that ensures batteries are fully charged every time and three isolated charge outputs for multi battery configurations to suit the majority of typical installations.
The range spans 12V and 24V models from 16A through to 100A.
Models: 12 / 24 Volt

Blue Smart IP22 Charger

The Blue Smart IP22 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.

Models: 12V 15/20/30A, 24V 8/12/16A

Blue Smart IP67 Charger Waterproof

The Blue Smart IP67 Waterproof Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP67 Waterproof Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.

Models: 12V 7/13/17/25A, 24V 5/8/12A

Blue Smart IP65 Charger (120V and 230V)

The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
New: IP65 6V/12V 1.1A
New: IP65 12/5 replaced by smaller equivalent model: IP65s 12/5

Models: 6V/12V 1.1A, 12V 4/5/7/10/15/25A, 24V 5/8/13A

Automotive IP65 Charger

Depending on the application, clamps, eyelets or a cigarette plug (all included) can be connected to the charger. Low power charger for 6V and 12V batteries: IP65 Charger 6V/12V-1,1A
Charger for 12V batteries with two charge current options: IP65 Charger 12V/4A – 12V/0,8A

Models: 6 / 12 Volt

EVC300400300 EV Charging station

Electrical Vehicle charing station
The EV Charging Station incorporates 4.3-inch LCD touch screen for monitoring and control.
Fully programmable RGB Light Ring around charging port, to quickly determine the device state. It can be programmed from the web interface to display different light effects based on the current state (disconnected, charging, charged etc.). The objective is to help the user see the current state from a distance.
High Power EV Charging Station The EV Charging Station has three phase and single-phase capabilities. It delivers maximum 22kW AC in three phase mode or 7.3kW in single phase mode.
Wi-Fi Communication Wi-Fi: 802.11 b/g/n for configuration and monitoring. The internal Wi-Fi module can be configured in Access Point mode or Station mode for both the initial setup and monitoring.
LCD Touch Screen It incorporates a 4.3-inch LCD Touch Screen for monitoring and control.
Light Ring for fast viewing the device state Fully programmable RGB Light Ring around charging port, to quickly determine the device state. It can be programmed from the web interface to display different light effects based on the current state (disconnected, charging, charged etc.). The objective is to help the user see the current state from a distance.
Two working modes are available: Manual Mode to configure output current Manual mode allows configurable output current between 6- 32A. The charging power is controlled in two ways: by using the slider on the LCD touch screen or by using its web page. It allows to manually start or stop the charging process when a vehicle is connected to the charging station.
Automatic Mode to ensure maximum PV system efficiency It detects when excess power is available and uses only that power to charge the vehicle.
Integration with GX devices The EV Charging Station can be configured and monitored from the GX screen devices and Remote Console.
Integration with VRM Several options are available in the VRM Portal: real-time reports, custom reports for configurable time periods, and advanced functions such as remote firmware updates.

Part #: EVC300400300

Qty:
